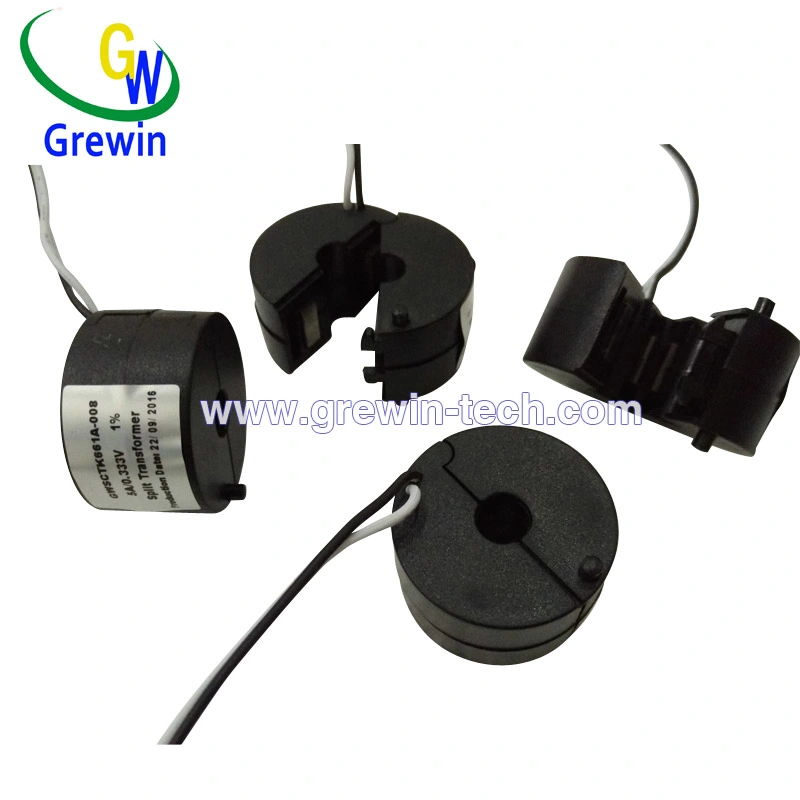

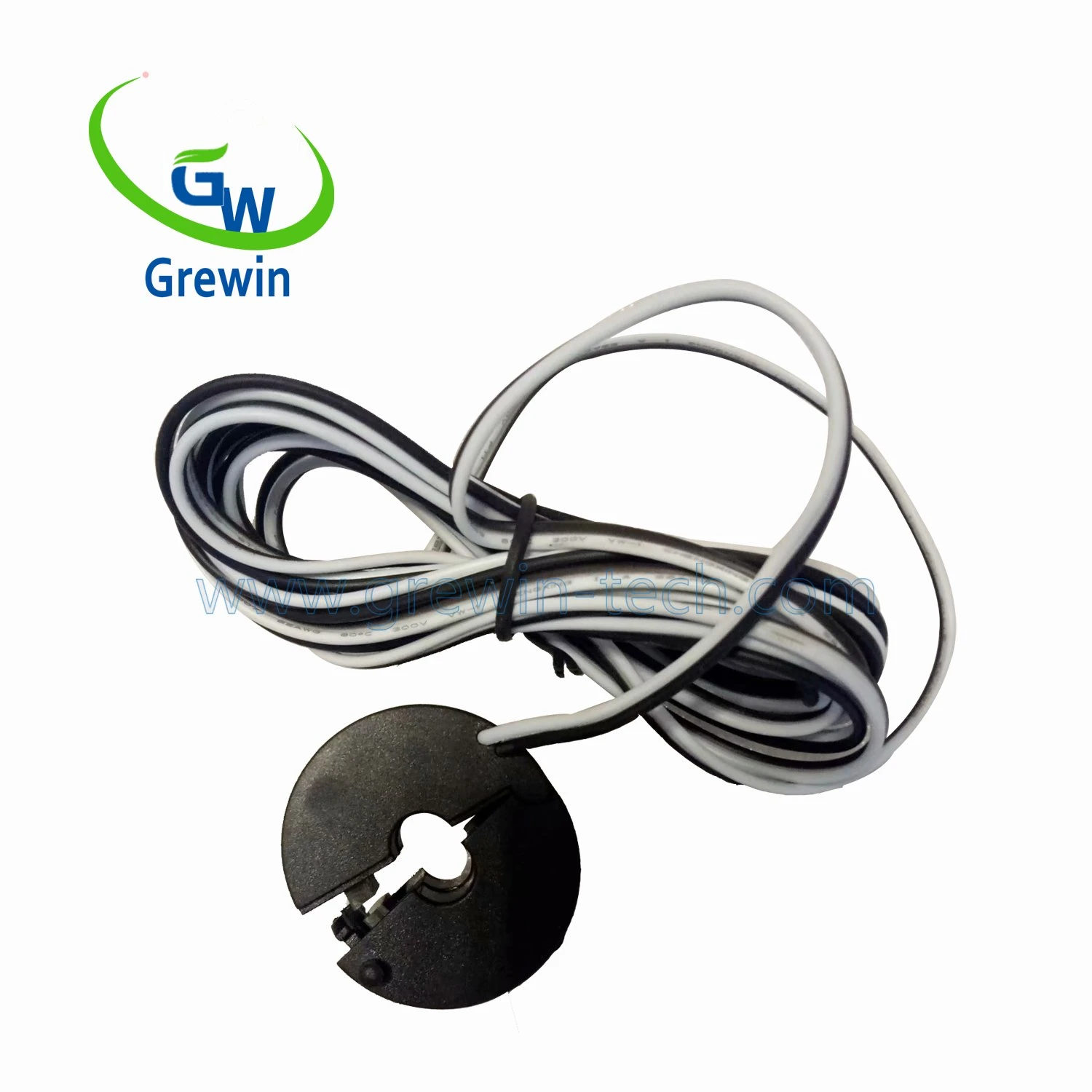

0.333V Toroidal Split Core DC Current Sensor Transformer

PRODUCT :current transformer split core ct split core  with ETL CB Mfgrated inputaccuracyGWSCCT661A-0080.5-50A0.20.51.0GWSCCT661B-0131-100AGWSCCT661C-0195-250AGWSCCT661D-0235-400AGWSCCT661E-03210-630AAccuracy class: 0.5 1.0SRated accuracy limit primary current: 600AProtection : 5 times Protection, 10 times pr

Featured Products

PRODUCT :current transformer split core ct split core  with ETL CB

Mfgrated inputaccuracy
GWSCCT661A-0080.5-50A0.2
0.5
1.0
GWSCCT661B-0131-100A
GWSCCT661C-0195-250A
GWSCCT661D-0235-400A
GWSCCT661E-03210-630A
0.333V Toroidal Split Core DC Current Sensor Transformer

Accuracy class: 0.5 1.0S
Rated accuracy limit primary current: 600A
Protection : 5 times Protection, 10 times protection
Frequency: 50--400Hz
A2. Split Core Current Transformers \mA or 0.333-3.53V Rated Secondary Output
1.Applications:
 Current, power, energy, monitoring devices;Relay protection devices;Power Factor Correction devices.
2. Specifications:Rated Primary current: 100-5000Aac;Rated Secondary current:5 or 1Aac;Rated load: 1, 2.5, 5.0, 10, 30VA;Accuracy: 0.5, 1.0, 3.0 Class;
3.Rated Short-time thermal current (Ith):20In
Rated Dynamic current (Idyn):2.5Ith;
Case Material: UL flame retardant rating 94-V0;
Highest Voltage for Equipment Um (rms):720 Vac;
Rated Power-Frequency Withstand Voltage;(rms):3,000 Vac
Frequency Range:50/60Hz;Operating Temperature: -15 to degree;
Standard:IEC 60044-1 .
Other  current transformer :
0.333V Toroidal Split Core DC Current Sensor Transformer0.333V Toroidal Split Core DC Current Sensor Transformer 0.333V Toroidal Split Core DC Current Sensor Transformer  0.333V Toroidal Split Core DC Current Sensor Transformer

 About us:
Tianjin Grewin Technology Co.,ltd. has always laying great emphasis on our core
business philosophy "Quality and Honesty First ".


Our strongly advantages as below:

 1.    Our transformer quality lifetime: 10 Years.
2.     Specialty Sales service: 5 -10 Years
3.    Proficient experience workers on average:Around 5 Years.
4.    Equipments:Advanced winding machines imported from Italy.
5.    Test: 100% test before the shipment

Related Transformer range:
0.333V Toroidal Split Core DC Current Sensor Transformer
